Description

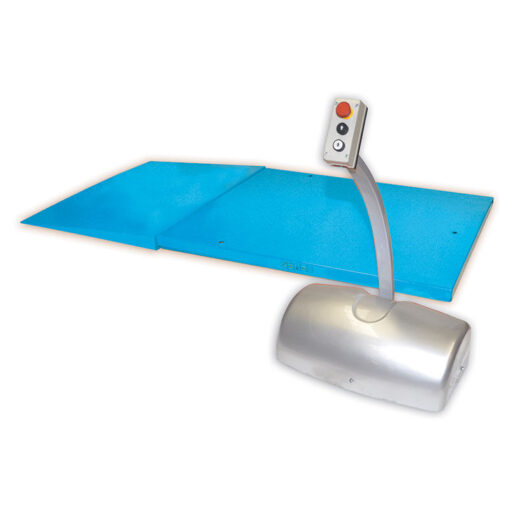

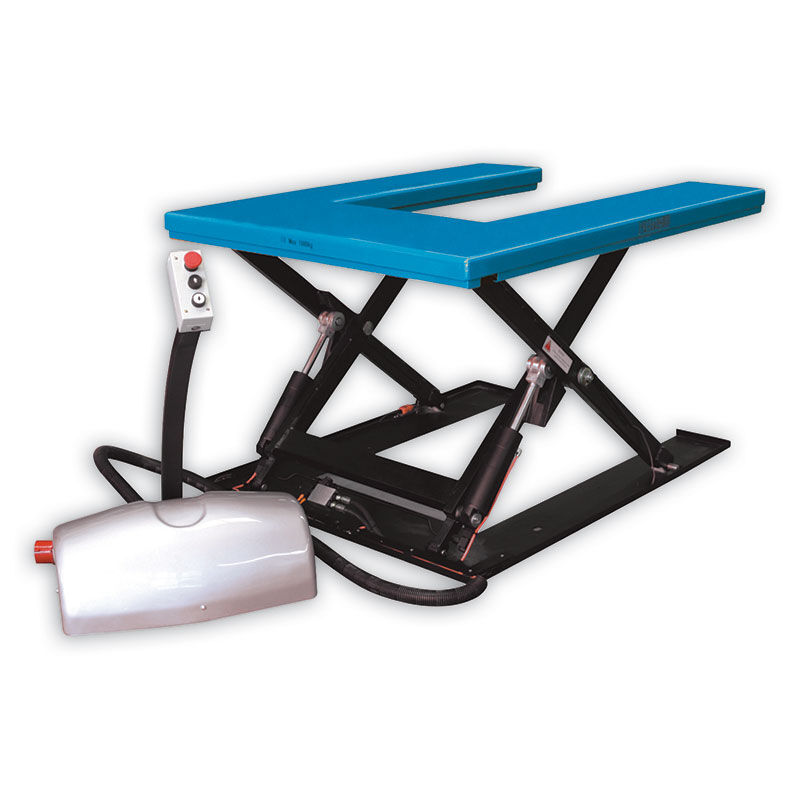

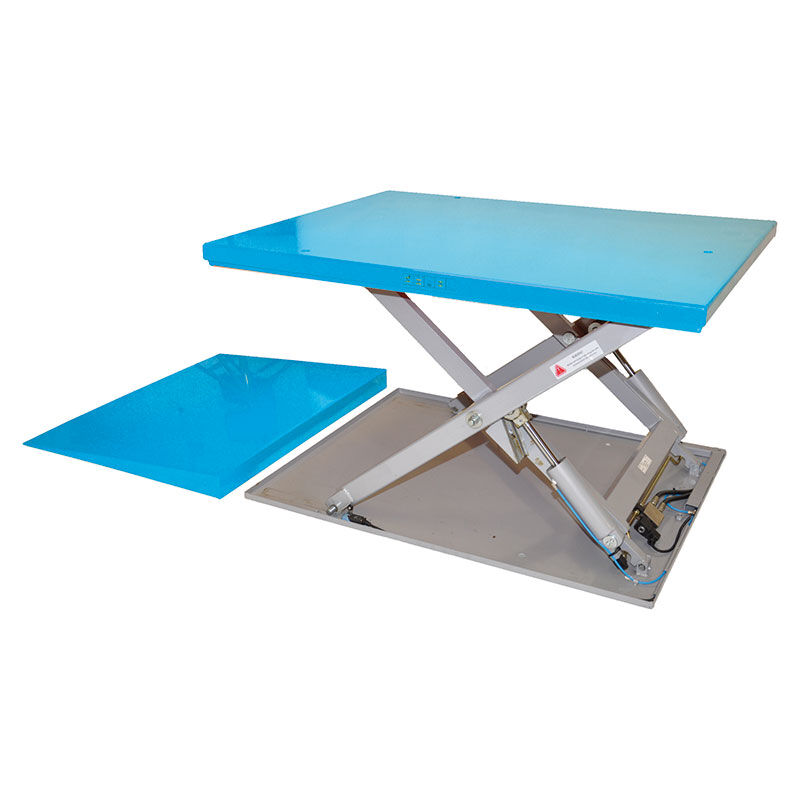

An essential piece of equipment for those who lift heavy goods on a regular basis, this Mains Operated Static Lift Table is available in two different designs to complement a variety of working environments. The U-Shape Lift Table is suitable for use with pallets, while the Full Platform Lift Table can be used to elevate a variety of different loads.
Fully equipped with an electronic control box, this Mains Operated Lift Table features a standard up/down button, an emergency button to prevent toppling accidents, and a remote power system for easy controlling during daily use and maintenance.
Please note – Three phase 414V power supply required and units needs to be installed by an electrician
Specifications
Load capacity 1000 kg
Lowered Platfor Height 80 mm for Full Platform and 82 mm for U Shaped
Lifting time 18 secs
Lifting time with load 42 mm per second
Motor kw
Raised platform height 760 mm
Compliant to BS EN 157- & BS EN 60204-1
